Product Overview

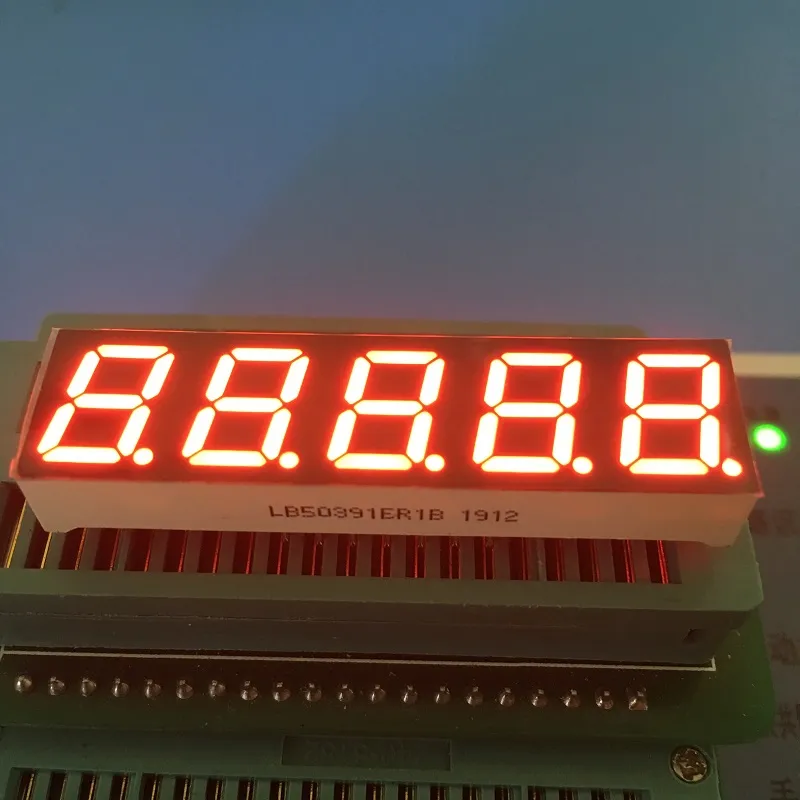

0.39-inch 5-digit 7-segment LED display with common cathode configuration and super bright red emission, specifically designed for digital frequency converters and industrial applications.
Technical Specifications
- Display Type: 5-digit, 0.39-inch 7-segment LED display
- Character Height: 10mm (0.39 inch)
- Outer Dimensions: 49*12.9*7.3 mm
- Design: White segments on black surface
- Configuration: Common cathode
- Emitting Color: Super bright red
- Luminous Intensity: 50-60 mcd
- Forward Voltage: 1.8-2.2V per LED
- Forward Current: 5-10mA per LED
- Available Colors: Red, blue, yellow green, pure green, amber, orange, and pure white
Electrical Parameters by Color Code
Yellow Green - J/JU
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 30 | | 40 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 569 | | 574 | nm |
Amber/Yellow - Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.5 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 585 | | 595 | nm |
Orange - F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 600 | | 605 | nm |
Super Bright Red - R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 630 | | 635 | nm |
Ultra Bright Red - UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 80 | | 100 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 625 | | 635 | nm |
Pure Green
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.6 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 180 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 515 | | 525 | nm |
Ultra Bright Blue - BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 140 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 460 | | 465 | nm |
Ultra Bright White - WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 140 | mcd |
| LED Color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | | 0.30,0.33 | nm |
Absolute Maximum Ratings (Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Power Dissipation (per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature (≤3 seconds) | Th | 260 | ºC |
Manufacturer Information
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, we are an ISO 9001:2015 certified manufacturer with over 15 years of OEM and ODM expertise in optoelectronic LED displays. Our commitment to innovation and quality ensures cost-effective custom solutions that enhance our clients' competitive advantage.
Applications
Our 7-segment LED displays, customized LED displays, numeric LED displays, and dot matrix LED displays are used in diverse applications including home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and comprehensive heating and cooling systems.
Certifications & Quality Assurance
Facility Overview
Industry Presence
Shipping & Logistics
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.
Q2: What are your main products?
A: Our main products include 7-segment LED displays, SMD LED displays, dot matrix LED displays, arrow LED displays, custom design LED displays, LED light bars, through-hole LEDs, SMD LEDs, and LED backlights.
Q3: What is your MOQ?
A: Our MOQ is 1000 pieces, but we also accept sample orders and small orders with quantities less than our MOQ.
Q4: Can I get samples for testing before placing an order?
A: Yes, we can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
A: Delivery time is typically 10-20 days, depending on order quantity and raw material availability. For urgent orders with materials in stock, we can adjust production to deliver within 7-10 days.
Q6: What are your payment terms?
A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment method details are negotiable.
Q7: Can you quote FOB prices?
A: Yes, we can quote prices based on incoterms EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
A: Please provide your email address or contact us directly through our website for our catalog and price list.
Q9: Can I negotiate prices?
A: Yes, we may consider discounts for bulk orders.
Q10: How much will shipping charges be?
A: Shipping charges depend on shipment size and shipping method. We will provide charges based on your request.
Q11: Can you do custom design products?
A: Yes, OEM and ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: If I send my design, will you keep it confidential?
A: Yes, we will not show or sell your design to others without your authorization.
Q13: What is the sample lead time for customized products?
A: Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval from customers.
Q14: What are your shipping methods?
A: We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
A: As ISO 9001 QMS certified manufacturers with over 20 years of experience, we conduct twice 100% testing of all products before shipment.
